74LS610
Memory mapper with output latch and 3-state outputs

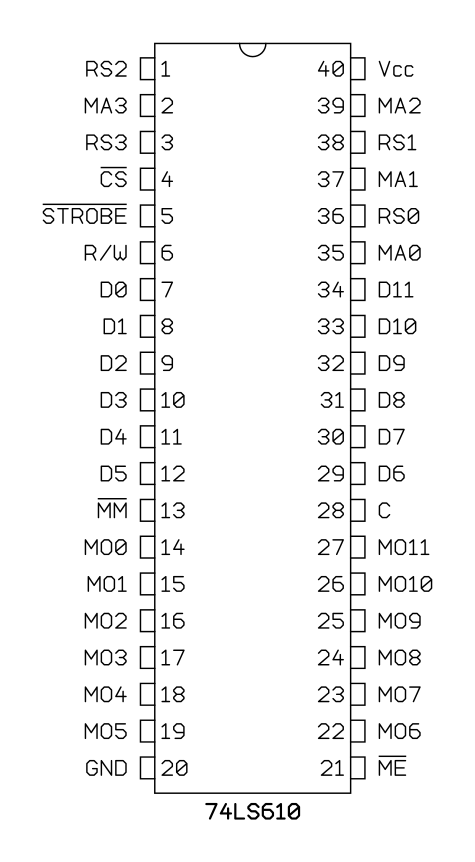

Pinout:
Default
Style:

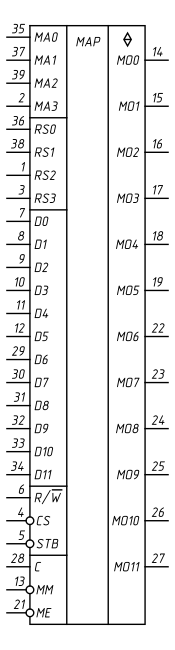

GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)
Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS610N
PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
