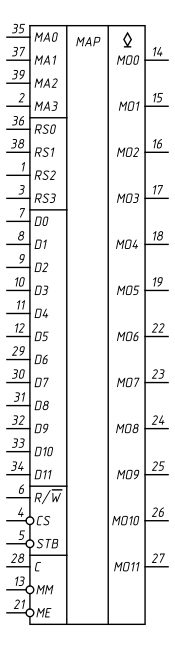

74LS611
Memory mapper with output latch and open collector outputs
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)

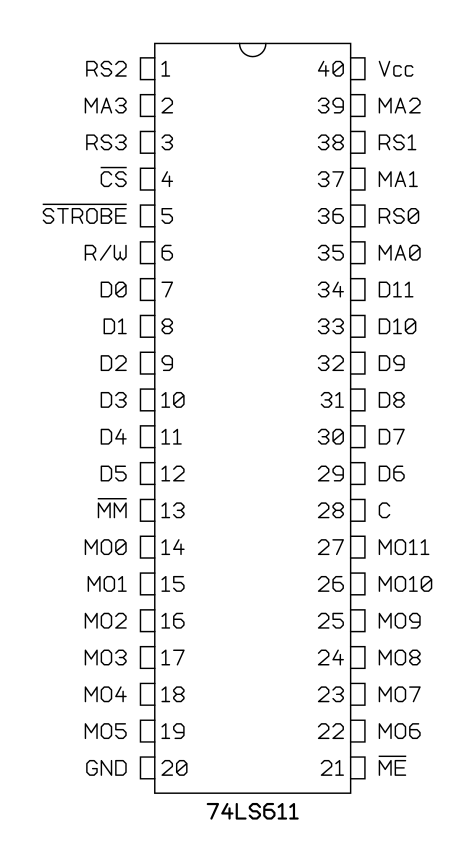

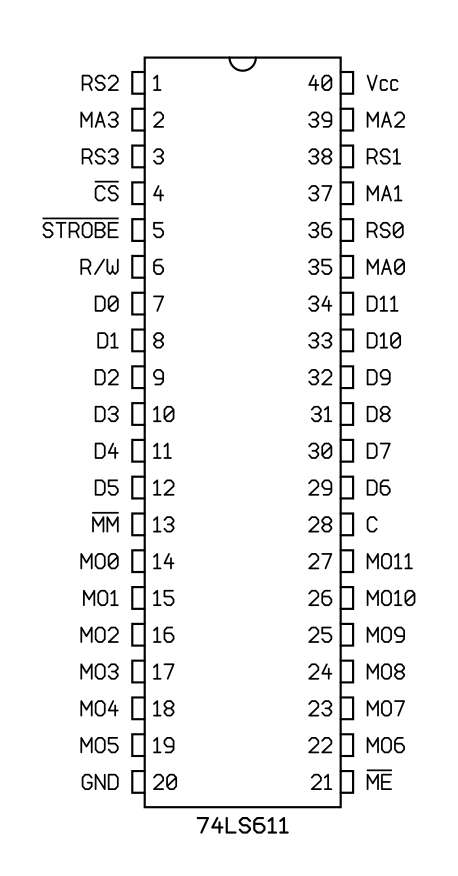

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS611N
PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
