74LS612
Memory mapper with 3-state outputs
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)

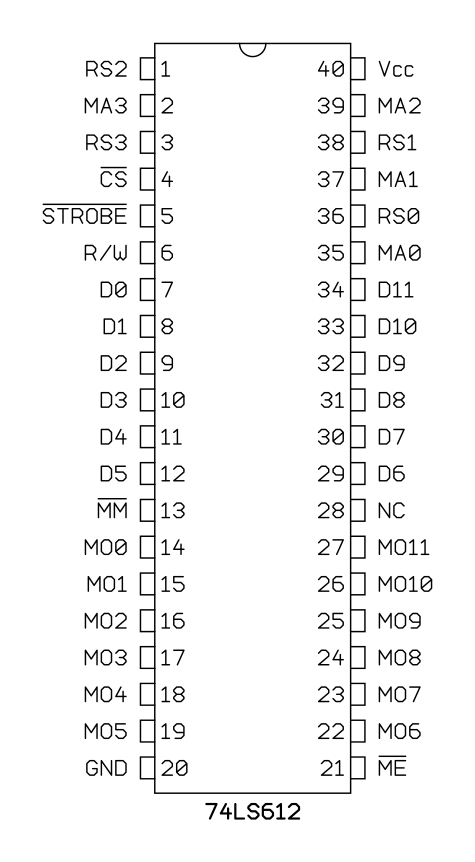

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS612N
PDIP-40 (JEDEC MS-011, Variation AC)

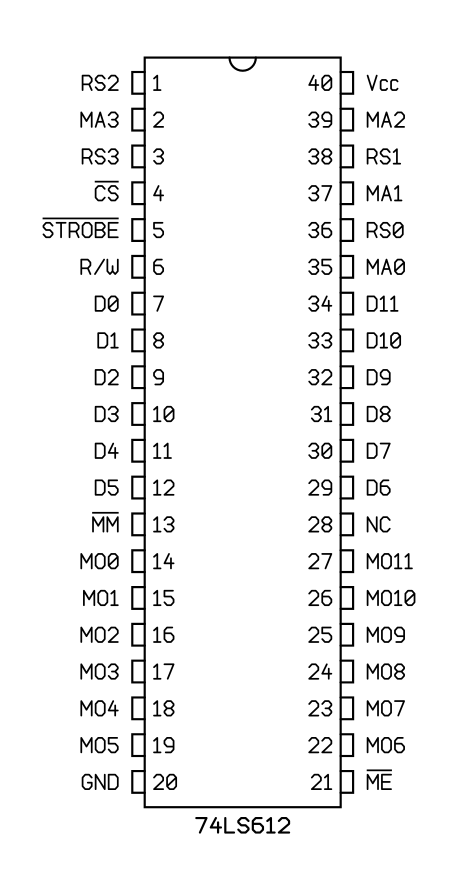

package diagram
